Aerial insulated cables
Standard
The product is manufactured according to the standard of GB12706 or IEC , BS , DIN and ICEA upon request.
Applications
The product is suitable for use in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 35KV.
Operating characteristics
1. XLPE Insulated Electrical Cable for rated power frequency voltage Uo/U:3.6/6KV~26/35KV.
Max.permissible continuous operating temperature of conductor:90℃
Max.short-circuit temperature of conductor shall not exceed 250℃.(5s Max. Duration)
The bending radius of single-core cable shall not less than 20 times of the cable diameter
The bending radius of three-cores cable shall not less than 15 times of the cable diameter
2. XLPE Insulated Electrical Cable for rated power frequency voltage Uo/U : 0.6/1KV
Max.permissible continuous operating temperature of conductor : 90℃
Max.short-circuit temperature of the conductor shall not exceed 250 ℃
The ambient temperature under installation shall not below 0 ℃
The bending radius of a cable shall not less than 15 times of the cable diameter .
3. PVC Insulated Electrical Cable for rated power frequency voltage Uo/U : 0.6/1KV
Max.permissible continuous operating temperature of conductor : 70 ℃
Max.short-circuit temperature of the conductor shall not exceed :160℃
The ambient temperature under installation shall not below 0 ℃
The bending radius of a cable shall not be less than 10 times of the cable diameter.
Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used , and is expressed in the form Uo/U(Um)kv .
Where:
Uo—The rated power-frequency voltage between conductor and screen or metallic-sheath , for which the cable designed;
U — The rated power –frequency voltage between conductors , for which the cable designed ;
Um—The maximum value of the “highest system voltage “ for which the equipment may be operated.

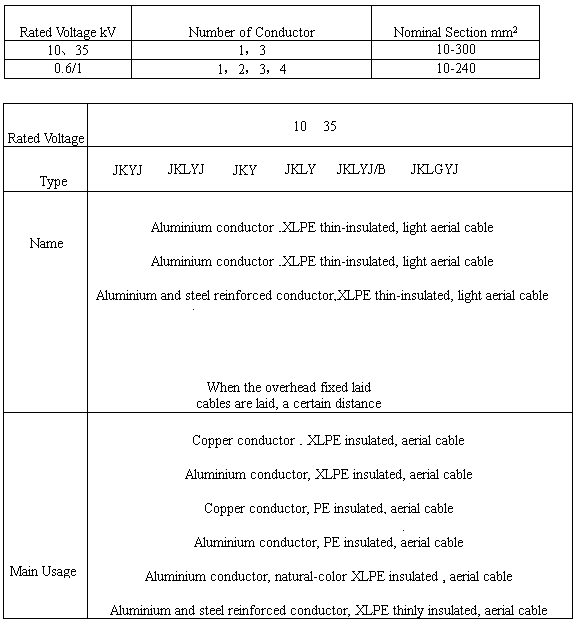

| Rated voltage kV | Number of conductor | Nominal section mm2 |
| 10、35 | 1，3 | 10-300 |
| 0.6/1 | 1，2，3，4 | 10-240 |
| Rated voltage 10 35 | |
| Type | JKYJ JKLYJ JKY JKLY JKLYJ/B JKLGYJ |
| Name |
Aluminum conductor, XLPE thin-insulated, light aerial cable Aluminum and steel reinforced conductor, XLPE thin-insulated, light aerial cable When the overhead fixed laid cables are laid, a certain distance between cables and trees should be taken into account.It is permissible that the cables continually touch the trees when the cables are operating. |
| Main usage |
Copper conductor, XLPE insulated, aerial cable Aluminum conductor, XLPE insulated, aerial cable Copper conductor, PE insulated, aerial cable Aluminum conductor, PE insulated, aerial cable Aluminum conductor, natural-color XLPE insulated, aerial cable Aluminum and steel reinforced conductor, XLPE thinly insulated, aerial cable |

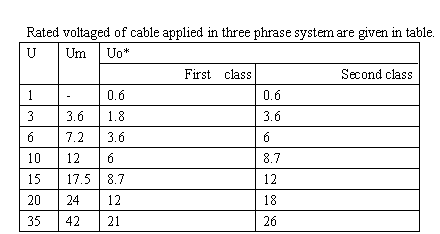

Rated voltage of cable applied in three phase system are given in table
| U | Um | U0* | |
| First class | Second class | ||
| 1 | - | 0.6 | 0.6 |
| 3 | 3.6 | 1.8 | 3.6 |
| 6 | 7.2 | 3.6 | 6 |
| 10 | 12 | 6 | 8.7 |
| 15 | 17.5 | 8.7 | 12 |
| 20 | 24 | 12 | 18 |
| 35 | 42 | 21 | 26 |
