Flameproof wire and cable
Fire-retardant cable for coal mine
date:2014-12-26

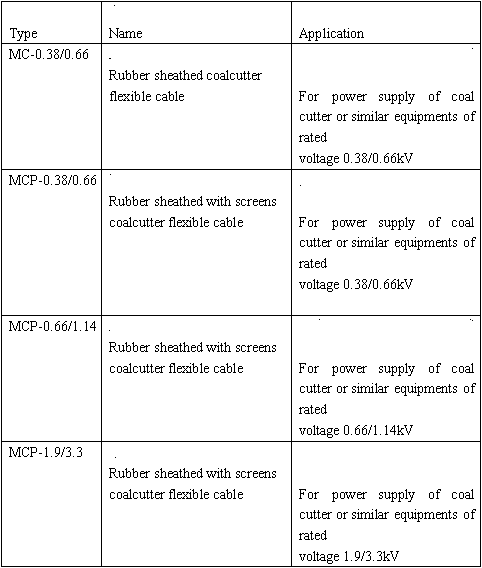

Coal cutter flexible cables for rated voltage up to and including 1.9/3.3kV
| Type | Name | Application |
| MC-0.38/0.66 | Rubber sheathed coal cutter flexible cable | For power supply of coal cutter or similar equipments of rated voltage 0.38/0.66kV |
| MCP-0.38/0.66 | Rubber sheathed with screens coal cutter flexible cable | For power supply of coal cutter or similar equipmenst of rated voltage 0.38/0.66kV |
| MCP-0.66/1.14 | Rubber sheathed with screens coal cutter flexible cable | For power supply of coal cutter or similar equipment of rated voltage 0.66/1.14kV |
| MCP-1.9/3.3 | Rubber sheathed with screens coal cutter flexible cable | For power supply of coal cutter or similar equipments of rated voltage 1.9/3.3kV |

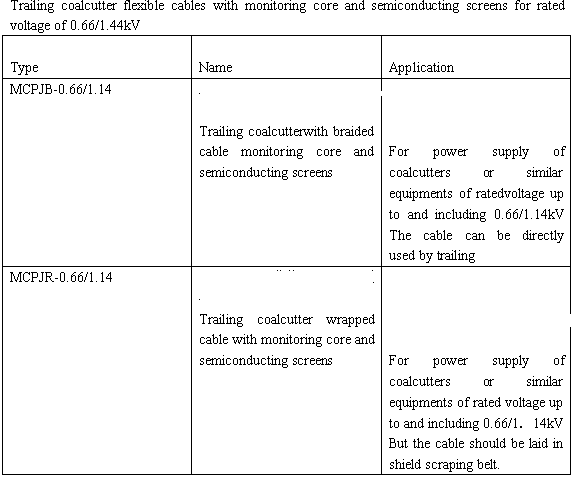

Trailing coal cutter flexible cables with monitoring core and semiconducting screens for rated voltage of 0.66/1.44kV
| Type | Name | Application |
| MCPJB-0.66/1.14 | Trailing coal cutter with braided cable monitoring core and semiconducting screens |
For power supply of coal cutters or similar equipments of rated voltage up to and including 0.66/1.14kV The cable can be directly used by trailing |
| MCPJR-0.66/1.14 | Trailing coal cutter wrapped cable with monitoring core and semiconducting screens |
For power supply of coal cutters or similar equipments of rated voltage up to and including 0.66/1.14kV But the cable should be laid in shield scraping belt |

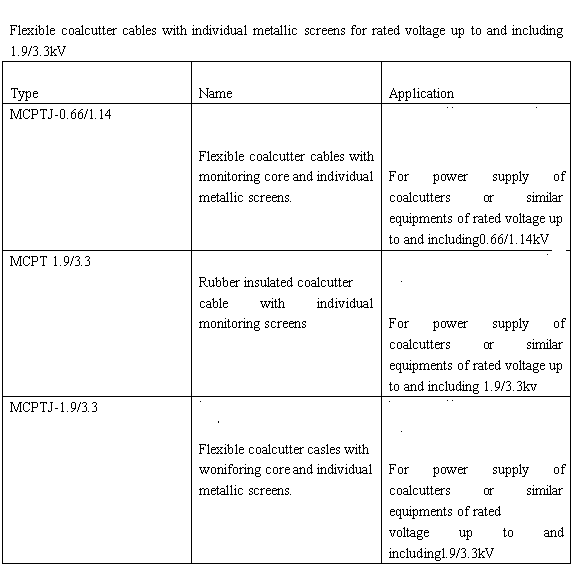

Flexible coal cutter cables with individual metallic screens for rated voltage up to and including 1.9/3.3kV
| Type | Name | Application |
| MCPTJ-0.66/1.14 | Flexible coal cutter cables with monitoring core and individual metallic screens | For power supply of coal cutters or similar equipments of rated voltage up to and including 0.66/1.14kV |
| MCPT-1.9/3.3 | Rubber insulated coal cutter cable with individual metallic screens | For power supply of coal cutters or similar equipments of rated voltage up to and including 1.9/3.3kV |
| MCPTJ-1.9/3.3 | Flexible coal cutter cables with monitoring core and individual metallic screens | For power supply of coal cutters or similar equipments of rated voltage up to and including 1.9/3.3kV |

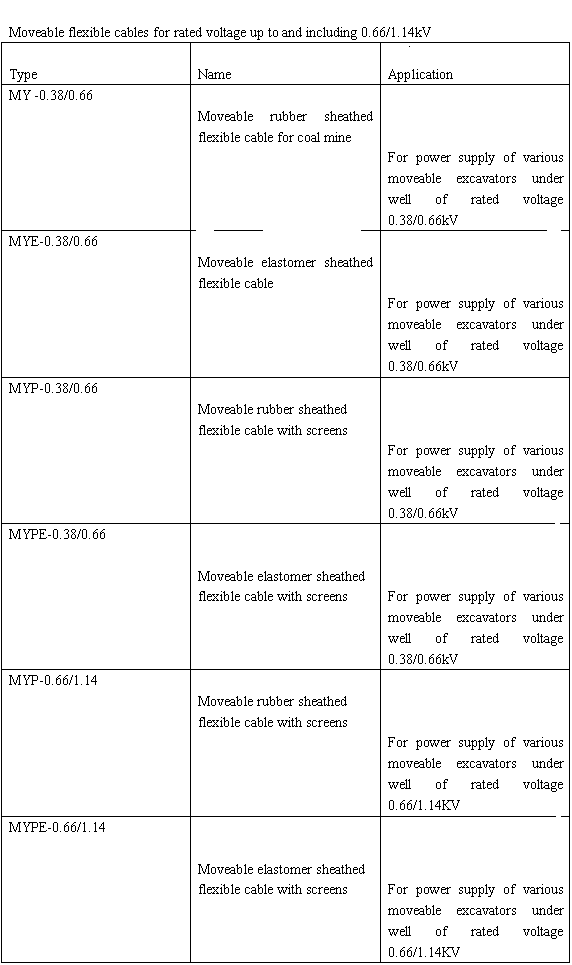

Movable flexible cables for rated voltage up to and including 0.66/1.14kV
| Type | Name | Application |
| MY-0.38/0.66 | Movable rubber sheathed flexible cable for coal mine | For power supply of various movable excavators under well of rated voltage 0.38/ 0.66kV |
| MYE-0.38/0.66 | Movable elastomer sheathed flexible cable | For power supply of various movable excavators under well of rated voltage 0.38/ 0.66kV |
| MYP-0.38/0.66 | Movable rubber sheathed flexible cable with screens | For power supply of various movable excavators under well of rated voltage 0.38/ 0.66kV |
| MYPE-0.38/0.66 | Movable elastomer sheathed flexible cable with screens | For power supply of various movable excavators under well of rated voltage 0.38/ 0.66kV |
| MYP-0.66/1.14 | Movable rubber sheathed flexible cable with screens | For power supply of various movable excavators under well of rated voltage 0.66/1.14kV |
| MYPE-0.66/1.14 | Movable elastomer sheathed flexible cable with screens | For power supply of various movable excavators under well of rated voltage 0.66/1.14kV |

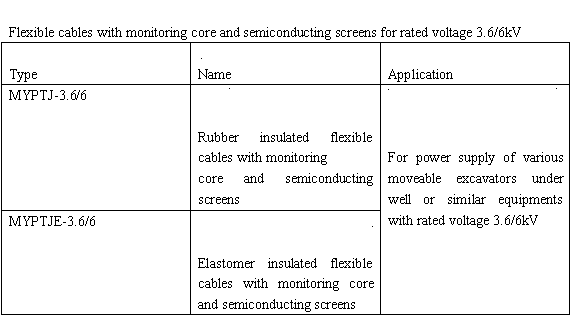

Flexible cables with monitoring core and semiconducting screens for rated voltage 3.6/6kV
| Type | Name | Application |
| MYPTJ-3.6/6 | Rubber insulated flexible cables with monitoring coal and semiconducting screens | For power supply of various movable excavators under well or similar equipments with rated voltage 3.6/6kV |
| MYPTJE-3.6/6 | Elastomer insulated flexible cables with monitoring coal and semiconducting screens |

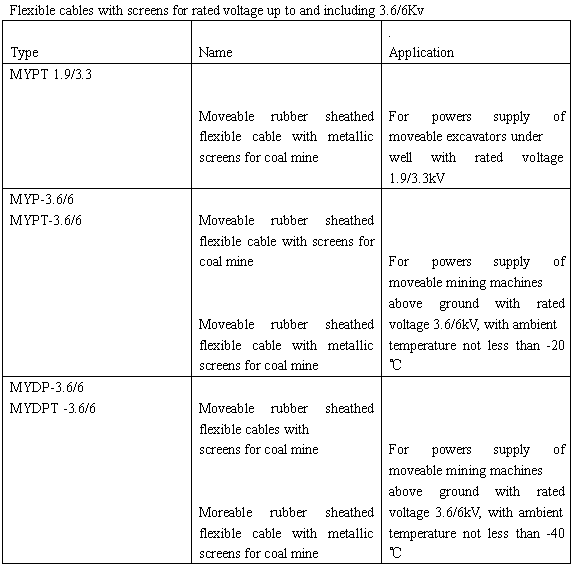

Flexible cables with screens for rated voltage up to and including 3.6/6kV
| Type | Name | Application |
| MYPT-1.9/3.3 | Movable rubber sheathed flexible cable with metallic screens for coal mine | For powers supply of movable excavators under well with rated voltage 1.9/3.3kV |
|
MYP-3.6/6 MYPT-3.6/6 |
Movable rubber sheathed flexible cable with screens for coal mine Movable rubber sheathed flexible cable with metallic screens for coal mine |
For powers supply of movable mining machines above ground with rated voltage 3.6/6kV, with ambient temperature not less than -20℃ |
|
MYDP-3.6/6 MYDPT-3.6/6 |
Movable rubber sheathed flexible cables with screens for coal mine Movable rubber sheathed flexible cable with metallic screens for coal mine |
For powers supply of movable mining machines above ground with rated voltage 3.6/6kV, with ambient temperature not less than -40℃ |

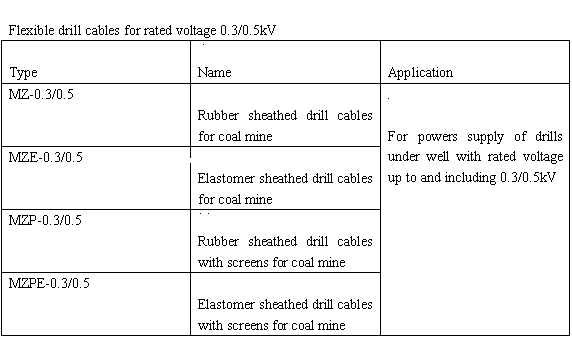

Flexible drill cables for rated voltage 0.3/0.5kV
| Type | Name | Application |
| MZ-0.3/0.5 | Rubber sheathed drill cables for coal mine | For powers supply of drills under well with rated voltage up to and including 0.3/0.5kV |
| MZE-0.3/0.5 | Elastomer sheathed drill cables for coal mine | |
| MZP-0.3/0.5 | Rubber sheathed drill cables with screeds for coal mine | |
| MZPE-0.3/0.5 | Elastomer sheathed drill cables with screeds for coal mine |

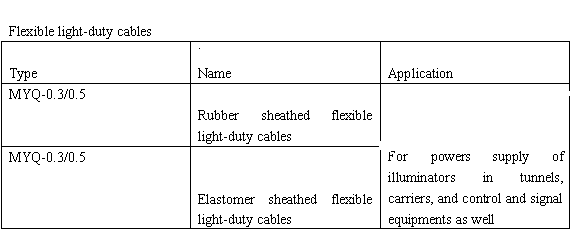

Flexible light-duty cables
| Type | Name | Application |
| MYQ-0.3/0.5 | Rubber sheathed flexible light-duty cables | For powers supply of illuminators in tunnels, carriers, and control and signal equipments as well |
| MYQ-0.3/0.5 | Elastomer sheathed flexible light-duty cables |
