Wire and Cable for Computer
Multi-core screened computer cable (enterprise standard )
Application
This product applies for connecting wire of electric appliance , apparatus or computer ,used in distribution equipments with rated voltage up to and including A.C. 450/750V or D.C. 1000V.
Condition
The cable is approved to operate upon fixed-installation or moveable using in ambient temperature from-40 ℃ to 50 ℃ ,relative humidity not larger than 80% and operating temperature of core not higher than 70 ℃ as well as avoiding direct high – temperature radiation or contact . The temperature shall never less than 0 ℃ when the cable being laid .
Permissible bending radius: not less than 6 times of overall diameter for unarmored cable ; not less than 12 times of overall diameter for armored or screened cable ; not less than 6 times of overall diameter for screened flexible cable.

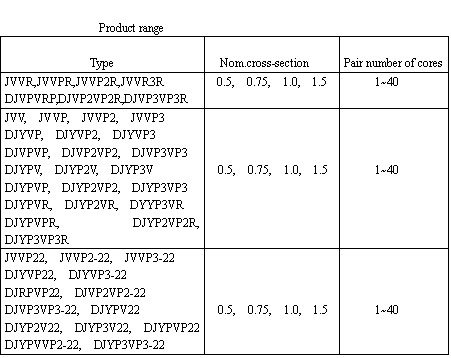

Product range
| Type | Nom. Cros-section | Paii number of cores |
| JVVR,JVVPR,JVVP2R,JVVP3R,DJVPVRP,DJVP2VP2R,DJVP3VP3R | 0.5, 0.75, 1.0, 1.5 | 1~40 |
| JVV,JVVP,JVVP2,JVVP3,DJYVP,DJYVP2,DJYVP3,DJVPVP,DJVP2VP2,DJVP3VP3,DJYPV,DJYP2V,DJYP3V,DJYPVP,DJYP2VP2,DJYP3VP3,DJYPVR,DJYP2VP2,DJYP3VP3,DJYPVR,DJYP2VR,DJYP3VR,DJYPVPR,DJYP2VP2R,DJYP3VP3R | 0.5, 0.75, 1.0, 1.5 | 1~40 |
| JVVP22,JVVP2-22,JVVP3-22,DJYVP22,DJYVP3-22,DJRPVP22,DJVP2VP2-22,DJVP3VP3-22,DJYPV22,DJYP2V22,DJYP3V22,DJYPVVP2-22,DJYP3VP3-22 | 0.5, 0.75, 1.0, 1.5 | 1~40 |
